» Superior flame retardant
» Flexible
» Shrinkage temperature is low: minimum shrinkage at 70°C, full shrinkage at 125°C
» Operating temperature: -55°C ~ 105°C
» Radial shrinkage ratio 2:1, longitudinal shrinkage ratio ± 5%
» Superior insulation, corrosion resistance and weather ability

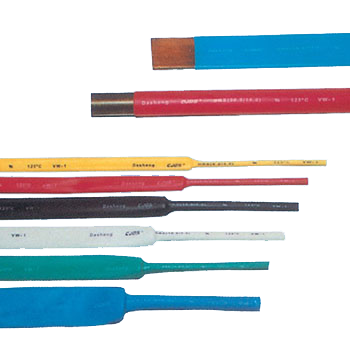

It is applicable to insulation protection and reinforcement of wire cable, electronic wiring harness and a variety of termination ends, connection components, solder joint, and so on.
|
Size (mm)
|
As supplied
|
After recovery
|
Len. (m)
per roll |
||
| I.D.(mm) | Wall (mm) | I.D.(mm) | Wall (mm) | ||
|
1.0/0.5
|
1.4±0.3
|
0.20±0.05
|
0.4±0.1
|
0.40±0.05
|
200
|
|
1.5/0.75
|
1.9±0.3
|
0.20±0.05
|
0.6±0.1
|
0.40±0.05
|
200
|
|
2.0/1.0
|
2.4±0.3
|
0.25±0.05
|
0.9±0.1
|
0.45±0.10
|
200
|
|
2.5/1.25
|
2.9±0.3
|
0.25±0.05
|
1.1±0.1
|
0.45±0.10
|
200
|
|
3.0/1.5
|
3.4±0.3
|
0.25±0.05
|
1.4±0.1
|
0.45±0.10
|
100
|
|
3.5/1.75
|
3.9±0.3
|
0.25±0.05
|
1.6±0.1
|
0.45±0.10
|
100
|
|
4.0/2.0
|
4.4±0.3
|
0.25±0.05
|
1.8±0.1
|
0.45±0.10
|
200
|
|
4.5/2.0
|
4.9±0.3
|
0.35±0.05
|
1.9±0.1
|
0.55±0.10
|
100
|
|
5.0/2.5
|
5.4±0.3
|
0.35±0.05
|
2.3±0.2
|
0.55±0.10
|
100
|
|
6.0/3.0
|
6.4±0.4
|
0.35±0.05
|
2.8±0.2
|
0.55±0.10
|
100
|
|
7.0/3.5
|
7.4±0.4
|
0.35±0.05
|
3.3±0.2
|
0.55±0.10
|
100
|
|
8.0/4.0
|
8.4±0.4
|
0.35±0.05
|
3.8±0.2
|
0.55±0.10
|
100
|
|
9.0/4.5
|
9.4±0.4
|
0.35±0.05
|
4.3±0.2
|
0.55±0.10
|
100
|
|
10.0/5.0
|
10.5±0.4
|
0.35±0.05
|
4.8±0.2
|
0.60±0.10
|
100
|
|
11.0/5.5
|
11.5±0.4
|
0.35±0.05
|
5.3±0.2
|
0.60±0.10
|
100
|
|
12.0/6.0
|
12.5±0.4
|
0.35±0.10
|
5.7±0.3
|
0.70±0.10
|
100
|
|
13.0/6.5
|
13.5±0.4
|
0.35±0.10
|
6.2±0.3
|
0.70±0.10
|
100
|
|
14.0/7.0
|
14.5±0.4
|
0.35±0.10
|
6.7±0.3
|
0.70±0.10
|
100
|
|
15.0/7.5
|
15.5±0.5
|
0.35±0.10
|
7.2±0.3
|
0.70±0.10
|
100
|
|
16.0/8.0
|
16.5±0.5
|
0.35±0.10
|
7.7±0.3
|
0.70±0.10
|
100
|
|
17.0/8.5
|
17.5±0.5
|
0.35±0.10
|
8.2±0.3
|
0.70±0.10
|
100
|
|
18.0/9.0
|
19.0±0.5
|
0.40±0.10
|
8.7±0.3
|
0.80±0.10
|
50
|
|
20.0/10.0
|
21.0±0.5
|
0.50±0.10
|
9.7±0.3
|
0.90±0.10
|
50
|
|
22.0/11.0
|
22.8±0.8
|
0.50±0.10
|
10.0±1.0
|
0.90±0.10
|
50
|
|
25.0/12.5
|
25.8±0.8
|
0.50±0.10
|
11.0±1.0
|
0.90±0.10
|
25
|
|
28.0/14.0
|
28.8±0.8
|
0.50±0.10
|
13.0±1.0
|
0.90±0.10
|
25
|
|
30.0/15.0
|
30.8±0.8
|
0.50±0.10
|
14.0±1.0
|
1.00±0.20
|
25
|
|
35.0/17.5
|
35.8±0.8
|
0.50±0.10
|
16.0±1.0
|
1.00±0.20
|
25
|
|
40.0/20.0
|
42.0±1.5
|
0.50±0.10
|
19.0±1.0
|
1.00±0.20
|
25
|
|
50.0/25.0
|
51.0±1.0
|
0.50±0.10
|
24.0±1.0
|
1.00±0.20
|
25
|
(Standard Colors: BLACK, WHITE, RED, YELLOW, BLUE, GREEN, GREY)
| Property | Condition | Performance |
| Tensile Strength | ≥ 12MPa | |
| Elongation | ≥ 400% | |
| Tensile Strength after Aging | ≥ 10MPa | |
| Elongation after Aging | ≥ 300% | |
| Deformation Test | 131°C, 1h | ≤ 25% |
| Heat Shock Test | 250°C, 4h | No Cracking |
| Flexibility Test | No Cracking, No Permanent Deformation | |
| Conductor Corrosion | No Corrosion | |
| Volume Resistivity | ≥ 1014 Ω·cm | |
| Dielectric Withstand | 2.5KV 60s, No Breakdown | |
| Breakdown Voltage | ≥ 10 KV | |
| Dielectric Strength | ≥ 25KV/mm | |
| Dielectric Withstand after Aging | 7 Days Air Oven at 158°C | 2.5KV 60s, No Breakdown |
| Breakdown Voltage after Aging | ≥ 10 KV | |
| Cold Bend Test | No Cracking | |
| Longitudinal Vhange | 3 min Air Oven at 200°C | ± 5% |
| Eccentricity | ≤ 30% | |
| Flammability | VW-1 | |
| Full Shrinkage Temperature | 3 min | 90°C |
