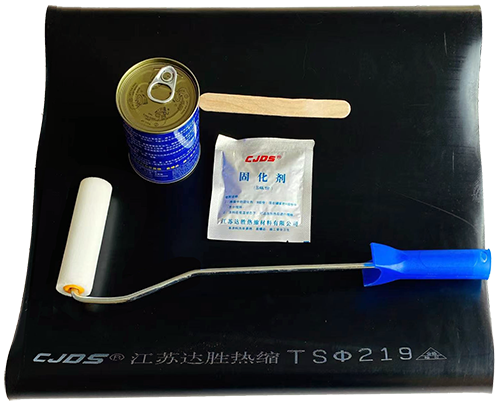

TS tubular heat shrinkable sleeve is designed for corrosion protection of field girth weld joint of buried and exposed steel pipelines, especially for corrosion protection of oil and gas petrol-pipeline. TS is made of a radiation cross linked polyolefin backing, coated with a hot-melting copolymer adhesive which effectively bonds to steel substrates and common pipelines coatings, including polyethylene and fusion bonded epoxy.
TS consists of a unique tubular configuration that has been factory constructed, resulting in quick and reliable field installation. TS can be also easily used for corrosion protection of flange joint, casing and bell joint of steel pipeline.
TS provides excellent resistance to cathodic disbondment resulting in effective long-term corrosion protection.
|
|
TS(M50)
|
TS(60)
|
TS(80)
|
|
Max. Operating Temperature
|
60°C
|
70°C
|
85°C
|
|
Applicable Outer Coating
|
PE, FBE, PP
|
PE, FBE, PP
|
PE, FBE, PP
|
|
Preheat Temperature
|
60°C
|
75°C
|
85°C
|
|
Derust Grade
|
Sa2.5, St3.0
|
Sa2.5, St3.0
|
Sa2.5, St3.0
|
(Standards: GB/T 5124, GB/T 23257 and other standards)
Application procedure of Heat Shrinkable Wraparound (Tubular) Sleeve| Property | Performance | Standard | ||||
| TS (M50) | TS (60) | TS (80) | ||||
| Primer | ||||||
| Solid Content % | 99.3 | 99.4 | 99.6 | GB/T 1725 | ||
| Cathodic Disbonding (65°C, 48h) m | 5 | 4.8 | 4.3 | GB/T 23257 | ||
| Backing | ||||||
| Tensile Strength MPa | 21 | 24 | 24 | GB/T 1040.2 | ||
| Elongation % | 550 | 550 | 550 | GB/T 1040.2 | ||
| Density | 0.93 | 0.94 | 0.94 | GB/T 29046 | ||
| Dielectric Strength MV/m | 35 | 35 | 35 | GB/T 1408.1 | ||
| Volume Resistivity Ω·m | 4.0×1015 | GB/T 1040 | ||||
| Heat Aging (150°C, 21d) |
Tensile Strength MPa | 17 | 18 | 18 | GB/T 1040 | |
| Elongation % | 480 | 480 | 480 | |||
| Hot Melt Adhesive | ||||||
| Softening Point °C | 78 | 113 | 120 | GB/T 15332 | ||
| Lap Shear Strength MPa | 0.8 | 0.8 | 1.0 | GB/T 7124 | ||
| Brittle Temperature °C | -30°C | -20°C | -15°C | GB/T 23257 | ||
| Heat Shrinkable Sleeve | ||||||
| Shock Resistance J/mm | ≥5 no leakage points | GB/T 23257 | ||||
| Peel Strength N/cm (cohesion) |
to Primer Steel (23°C) | 90 | 160 | 140 | GB/T 23257 | |
| to PE (23°C) | 85 | 110 | 95 | |||
| to Primer Steel (Tmax) | 5 | 8 | 10 | |||
| to PE (Tmax) | 4 | 8 | 10 | |||
| Cathodic Disbonding mm |
23°C, 28d | 8.2 | 5.6 | 4.8 | GB/T 23257 | |
| Tmax, 28d | 12 | 8.6 | 9.4 | |||
| Peel Strength (Tmax Hot Water Immersion 28d) N/cm |
to Primer Steel (23°C) | 52 | 143 | 152 | GB/T 23257 | |
| to PE (23°C) | 56 | 145 | 162 | |||
| Heat Aging (Tmax+20°C, 100d) Peel Strength Retention % |
P₁oo/Po | 86 | 83 | 84 | GB/T 23257 | |
| Paop/P70 | 92 | 91 | 98 | |||
