HBDRS-1 is an Environmentally friendly flame-retardant low-temperature heat shrinkable tubing, not including Pb, Cd, Hg, Cr6+, PBDEs, PBBs. It is irradiated cross-linked and complies with ROHS directive and sony SS-00259 requirements.

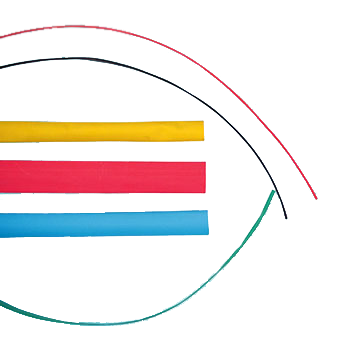

WLDRS-1 WLDRS-1 low smoke zero halogen heat shrinkable tubing is a new generation of environment friendly products, widely used in automotive, electronics, military, marine, aerospace and other fields. Because the product uses a new flame retardant system, even if they are combusted with naked flame, the released substances are carbon dioxide and water vapor and do not produce other toxic, corrosive gases. This product has not only maintained oil, wear, insulation, corrosion resistance, flame retardant and toher features of normal heat shrinkable tubing, but also has a low smoke, halogen-free, non-toxic and so on. It not only fully develops the potential of the material, but also meets current market demand for environment friendly products.
It is applicable to insulation protection and reinforcement of wire cable, electronic wiring harness and a variety of termination ends, connection components, solder joint, and so on.
|
Size (mm)
|
As supplied
|
After recovery
|
Len. (m)
per roll |
||
| I.D.(mm) | Wall (mm) | I.D.(mm) | Wall (mm) | ||
|
1.0/0.5
|
1.4±0.3
|
0.20±0.05
|
0.4±0.1
|
0.40±0.05
|
200
|
|
1.5/0.75
|
1.9±0.3
|
0.20±0.05
|
0.6±0.1
|
0.40±0.05
|
200
|
|
2.0/1.0
|
2.4±0.3
|
0.25±0.05
|
0.9±0.1
|
0.45±0.10
|
200
|
|
2.5/1.25
|
2.9±0.3
|
0.25±0.05
|
1.1±0.1
|
0.45±0.10
|
200
|
|
3.0/1.5
|
3.4±0.3
|
0.25±0.05
|
1.4±0.1
|
0.45±0.10
|
100
|
|
3.5/1.75
|
3.9±0.3
|
0.25±0.05
|
1.6±0.1
|
0.45±0.10
|
100
|
|
4.0/2.0
|
4.4±0.3
|
0.25±0.05
|
1.8±0.1
|
0.45±0.10
|
200
|
|
4.5/2.0
|
4.9±0.3
|
0.35±0.05
|
1.9±0.1
|
0.55±0.10
|
100
|
|
5.0/2.5
|
5.4±0.3
|
0.35±0.05
|
2.3±0.2
|
0.55±0.10
|
100
|
|
6.0/3.0
|
6.4±0.4
|
0.35±0.05
|
2.8±0.2
|
0.55±0.10
|
100
|
|
7.0/3.5
|
7.4±0.4
|
0.35±0.05
|
3.3±0.2
|
0.55±0.10
|
100
|
|
8.0/4.0
|
8.4±0.4
|
0.35±0.05
|
3.8±0.2
|
0.55±0.10
|
100
|
|
9.0/4.5
|
9.4±0.4
|
0.35±0.05
|
4.3±0.2
|
0.55±0.10
|
100
|
|
10.0/5.0
|
10.5±0.4
|
0.35±0.05
|
4.8±0.2
|
0.60±0.10
|
100
|
|
11.0/5.5
|
11.5±0.4
|
0.35±0.05
|
5.3±0.2
|
0.60±0.10
|
100
|
|
12.0/6.0
|
12.5±0.4
|
0.35±0.10
|
5.7±0.3
|
0.70±0.10
|
100
|
|
13.0/6.5
|
13.5±0.4
|
0.35±0.10
|
6.2±0.3
|
0.70±0.10
|
100
|
|
14.0/7.0
|
14.5±0.4
|
0.35±0.10
|
6.7±0.3
|
0.70±0.10
|
100
|
|
15.0/7.5
|
15.5±0.5
|
0.35±0.10
|
7.2±0.3
|
0.70±0.10
|
100
|
|
16.0/8.0
|
16.5±0.5
|
0.35±0.10
|
7.7±0.3
|
0.70±0.10
|
100
|
|
17.0/8.5
|
17.5±0.5
|
0.35±0.10
|
8.2±0.3
|
0.70±0.10
|
100
|
|
18.0/9.0
|
19.0±0.5
|
0.40±0.10
|
8.7±0.3
|
0.80±0.10
|
50
|
|
20.0/10.0
|
21.0±0.5
|
0.50±0.10
|
9.7±0.3
|
0.90±0.10
|
50
|
|
22.0/11.0
|
22.8±0.8
|
0.50±0.10
|
10.0±1.0
|
0.90±0.10
|
50
|
|
25.0/12.5
|
25.8±0.8
|
0.50±0.10
|
11.0±1.0
|
0.90±0.10
|
25
|
|
28.0/14.0
|
28.8±0.8
|
0.50±0.10
|
13.0±1.0
|
0.90±0.10
|
25
|
|
30.0/15.0
|
30.8±0.8
|
0.50±0.10
|
14.0±1.0
|
1.00±0.20
|
25
|
|
35.0/17.5
|
35.8±0.8
|
0.50±0.10
|
16.0±1.0
|
1.00±0.20
|
25
|
|
40.0/20.0
|
42.0±1.5
|
0.50±0.10
|
19.0±1.0
|
1.00±0.20
|
25
|
|
50.0/25.0
|
51.0±1.0
|
0.50±0.10
|
24.0±1.0
|
1.00±0.20
|
25
|
(Standard Colors: BLACK, WHITE, RED, YELLOW, BLUE, GREEN, GREY)
| Property | Condition | Performance |
| Tensile Strength | ≥ 12MPa | |
| Elongation | ≥ 400% | |
| Tensile Strength after Aging | ≥ 10MPa | |
| Elongation after Aging | ≥ 300% | |
| Deformation Test | 131°C, 1h | ≤ 25% |
| Heat Shock Test | 250°C, 4h | No Cracking |
| Flexibility Test | No Cracking, No Permanent Deformation | |
| Conductor Corrosion | No Corrosion | |
| Volume Resistivity | ≥ 1014 Ω·cm | |
| Dielectric Withstand | 2.5KV 60s, No Breakdown | |
| Breakdown Voltage | ≥ 10 KV | |
| Dielectric Strength | ≥ 25KV/mm | |
| Dielectric Withstand after Aging | 7 Days Air Oven at 158°C | 2.5KV 60s, No Breakdown |
| Breakdown Voltage after Aging | ≥ 10 KV | |
| Cold Bend Test | No Cracking | |
| Longitudinal Change | 3 min Air Oven at 200°C | ± 5% |
| Eccentricity | ≤ 30% | |
| Flammability | VW-1 | |
| Full Shrinkage Temperature | 3 min | 90°C |
