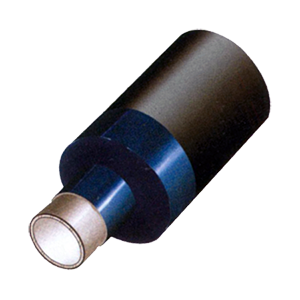

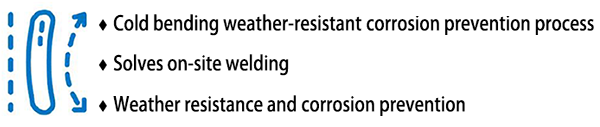

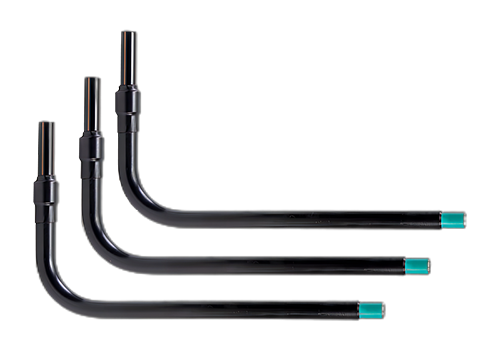

This product adopts the cold bending weather-resistant corrosion prevention process, which solves the problems of on-site welding and weather-resistant corrosion prevention for 90° elbows (pipes) in the construction of steel-plastic transitions. It eliminates the safety hazards associated with on-site welding during pipeline installation, ensures the quality of pipeline installation, reduces construction costs, reduces on-site quality management difficulties, and improves installation efficiency.
Item | Contents |
Standards | GB26255.1-2010, GB26255.2-2010, TSG D70022006 |
Pressure Rating (working pressure) | ≤ 0.4MPa |
Specifications | PEφ20-φ18 ~ PEφ400-φ426 |
Applicable Medium Temperature | -20°C ~ 40°C |
Applicable Medium | gas, oil, water |
Test & Inspection | hydraulic test 1.5PN (design pressure), air tight test 1.15PN (design pressure) |
Pipe Material | PE: GB15558, PE80/PE100/SDR11; Steel: GB/T8163-200820#, GB3087-2008 |
PE Pipe Connection | electric melt or hot melt, according with requirements of CJJ63-2008 |
Steel Pipe Connection | welding (GB50236-2011) / threaded connection (GB/T7036.2) |
Overall Corrosion Protection | 3PE Overall Corrosion Protection/FBE (GB/T23257-2017) |
