• Light in weight, reliable in operation, and easy to install;
• The product complies with GB11033 standards;
• Suitable for long-term use under temperature conditions ranging from -50°C to 105°C;
• Mainly used for 35KV cable termination and intermediate connection processing;
• Widely used in various fields such as power, petrochemical, metallurgy, railway, port, and construction.

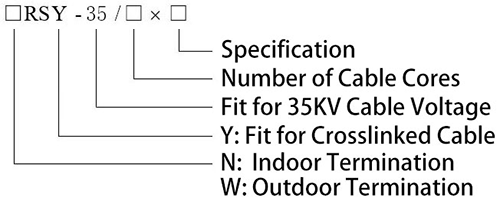

| Model |
Description
|
Cable mm2
|
||
|
NRSY－35/1×1
NRSY－35/1×2 NRSY－35/1×3 |
35KV "XLPE" Heat Shrinkable Indoor Termination (1-core)
|
25
70 150 |
~ ~ ~ |
50 120 240 |
|
WRSY－35/1×1
WRSY－35/1×2 WRSY－35/1×3 |

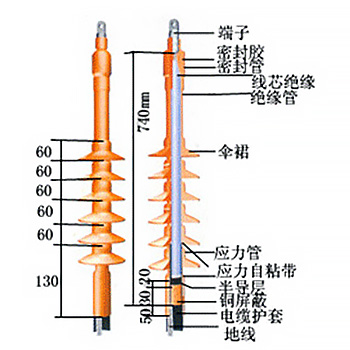

35KV "XLPE" Heat Shrinkable Outdoor Termination (1-core)
|
25 70 150 |
~ ~ ~ |
50 120 240 |
|
NRSY－35/3×1
NRSY－35/3×2 NRSY－35/3×3 |
35KV "XLPE" Heat Shrinkable Indoor Termination (3-cores)
|
25 70 150 |
~ ~ ~ |
50 120 240 |
|
WRSY－35/3×1
WRSY－35/3×2 WRSY－35/3×3 |
35KV "XLPE" Heat Shrinkable Outdoor Termination (3-cores)
|
25 70 150 |
~ ~ ~ |
50 120 240 |
35KV Heat Shrinkable Power Cable Accessories list & assemble instructions| Property | Condition | Performance |
| AC Voltage Withstand (dry) | 105KV/1min | No flashover; No breakdown |
| AC Voltage Withstand (wet) | 105KV/1min | No flashover; No breakdown |
| AC Voltage Withstand (long time) | 104KV/4h | No flashover; No breakdown |
| Impulse Voltage Withstand | 250KV/±10shots | No breakdown |
| DC Voltage Withstand | 156KV/15min | No flashover; No breakdown |
| Partial Discharge | 39KV, ≤10PC | 39, 8 |
