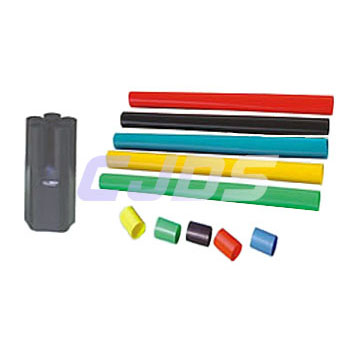

• Light in weight, reliable in operation, and easy to install;
• The product complies with GB11033 standards;
• Suitable for long-term use under temperature conditions ranging from -50°C to 105°C;
• Mainly used for 1KV cable termination and intermediate connection processing;
• Widely used in various fields such as power, petrochemical, metallurgy, railway, port, and construction.
| Model |
Description
|
Cable mm2
|
||
|
TRSY－1/2×0
TRSY－1/2×1 TRSY－1/2×2 TRSY－1/2×3 TRSY－1/2×4 |
1KV "XLPE" Heat Shrinkable Termination (2-cores)
|
10
25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
JRSY－1/2×0
JRSY－1/2×1 JRSY－1/2×2 JRSY－1/2×3 JRSY－1/2×4 |
1KV "XLPE" Heat Shrinkable Middle Joint (2-cores)
|
10
25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
TRSY－1/3×0
TRSY－1/3×1 TRSY－1/3×2 TRSY－1/3×3 TRSY－1/3×4 |
1KV "XLPE" Heat Shrinkable Termination (3-cores)
|
10
25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
JRSY－1/3×0
JRSY－1/3×1 JRSY－1/3×2 JRSY－1/3×3 JRSY－1/3×4 |
1KV "XLPE" Heat Shrinkable Middle Joint (3-cores)
|
10
25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
TRSY－1/4×0
TRSY－1/4×1 TRSY－1/4×2 TRSY－1/4×3 TRSY－1/4×4 |
1KV "XLPE" Heat Shrinkable Termination (4-cores)
|
10
25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
JRSY－1/4×0
JRSY－1/4×1 JRSY－1/4×2 JRSY－1/4×3 JRSY－1/4×4 |
1KV "XLPE" Heat Shrinkable Middle Joint 4-cores)
|
10
25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
TRSY－1/5×0
TRSY－1/5×1 TRSY－1/5×2 TRSY－1/5×3 TRSY－1/5×4 |
1KV "XLPE" Heat Shrinkable Termination (5-cores)
|
10 25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
|
JRSY－1/5×0
JRSY－1/5×1 JRSY－1/5×2 JRSY－1/5×3 JRSY－1/5×4 |
1KV "XLPE" Heat Shrinkable Middle Joint (5-cores)
|
10 25 70 150 300 |
~ ~ ~ ~ ~ |
16 50 120 240 400 |
